Single Row Crossed Roller Slewing Bearing (HJ Series）-- Internal Gear

Single Row Crossed Roller Slewing Bearing (HJ Series）-- Internal Gear

The single row crossed roller slewing bearing is composed of two seat rings, which design in compact structure and light weight, the clearance is small when assembly, so need high precision.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Characteristic Of Structure, Performance And Application

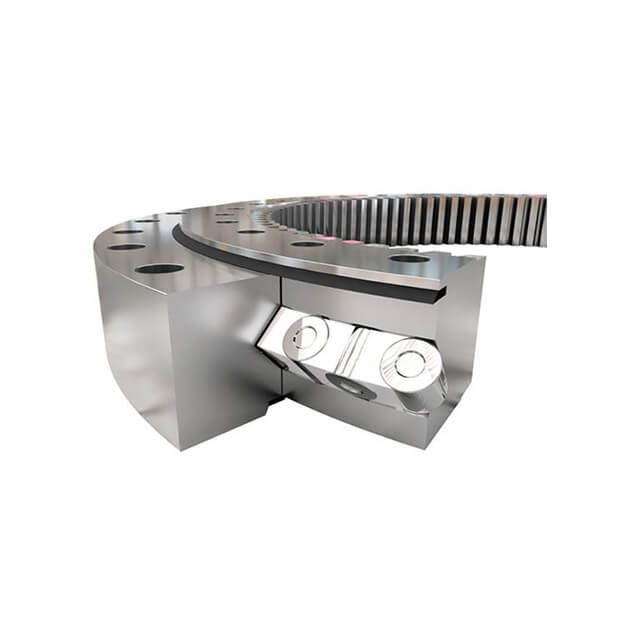

The single row crossed roller slewing bearing is composed of two seat rings, which design in compact structure and light weight, the clearance is small when assembly, so need high precision. The roller are 1:1 cross arranged, it can bear the axial force, tilting moment and relatively large radial force. It is widely used for hoisting, transportation, construction machinery, and the military products.

Note:

n1 is the nos of lubricating holes.Oil cup M10×1JB/T7940.1~JB/T7940.2.The Oil nipple's location can be change according to the user's application.
n-φcan change to tapped hole,the diameter of tapped hole is M,depth is 2M.
The tangential tooth force in the form is the max tooth force,the nominal tangential tooth force is 1/2 of the max one.
"K" is addendum reduction coefficient.

Technical Parameters

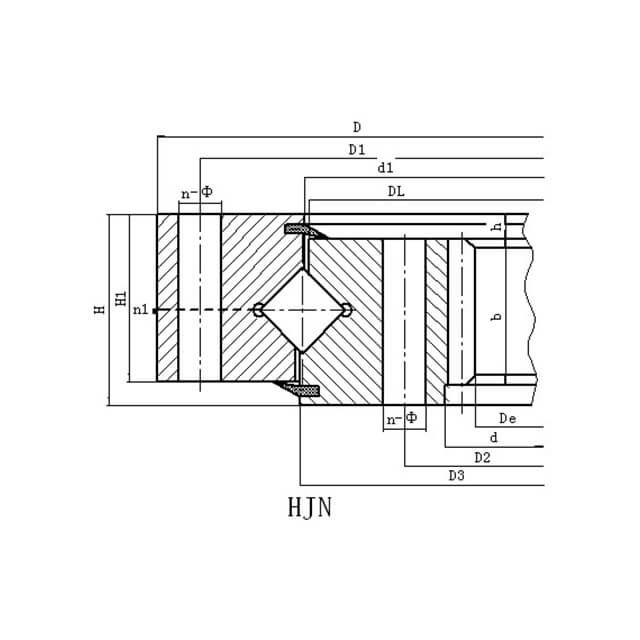

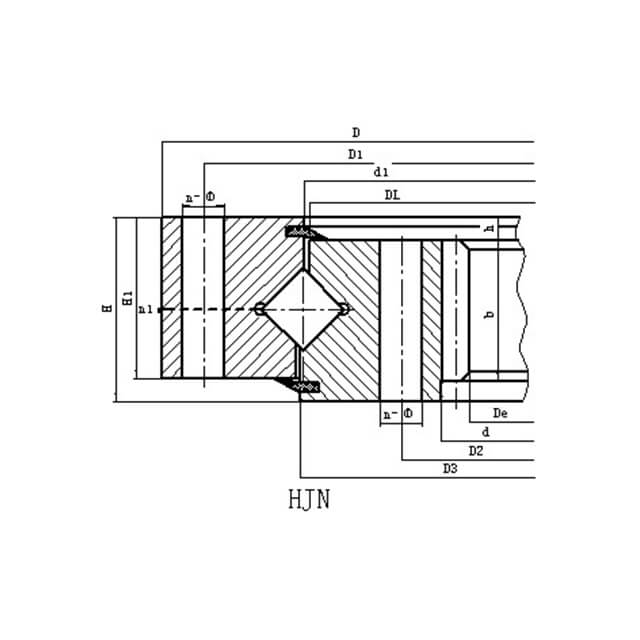

No.	Internal gear DL mm	Dimensions			Mounting Dimensions				Structural Dimension					Gear data					Gear circumferential force	Weight kg
		D mm	d mm	H mm	D1 mm	D2 mm	n	mm	n1 mm	D3 mm	d1 mm	H1 mm	h mm	b mm	x	m mm	De mm	z	Quenching T 104N
1	HJN.20.625	725	525	80	685	565	18	18	3	627	623	68	12	60	1.4	5	498.8	101	5.2	100
	HJN.20.625A														1.15	6	496.7	84	6.2
2	HJN.20.720	820	620	80	780	660	18	18	3	722	718	68	12	60	1.4	6	586.6	99	6.2	120
	HJN.20.720A														1	8	582.3	74	8.3
3	HJN.30.820	940	705	95	893	749	24	20	4	822	818	83	12	70	1.4	6	664.5	112	7.2	210
	HJN.30.820A														1	10	658	67	12.2
4	HJN.30.880	1000	760	95	956	800	24	20	4	882	878	83	12	70	1.15	8	718.2	91	9.7	230
	HJN.30.880A														1	10	707.9	72	12.2
5	HJN.30.1020	1170	875	95	1120	930	24	22	4	1022	1018	80	15	70	1.4	8	830.1	105	9.7	300
	HJN.30.1020A														1.15	10	827.8	84	12.2
6	HJN.36.1220	1365	1075	120	1310	1130	36	24	6	1222	1218	105	15	90	1.4	10	1027.8	104	15.7	450
	HJN.36.1220A														1	12	1017.3	86	18.8
7	HJN.36.1250	1400	1090	120	1350	1150	36	26	6	1252	1248	105	15	90	-0.35	10	1037	105	15.7	520
	HJN.36.1250A														1	12	1028.8	87	18.8
8	HJN.36.1435	1595	1278	120	1535	1335	36	26	6	1437	1433	105	15	90	1.15	12	1221.2	1.3	18.8	610
	HJN.36.1435A														1	14	1214.8	88	21.9
9	HJN.45.1540	1720	1360	140	1660	1420	42	26	6	1543	4537	122	18	110	1.4	12	1293.1	109	23	732
	HJN.45.1540A														1.15	14	1284.8	93	26.8
10	HJN.45.1700	1875	1525	140	1815	1585	42	29	6	1703	1697	122	18	110	1.15	14	1452.7	105	26.8	844
	HJN.45.1700A														1.15	16	1452.3	92	30.5
11	HJN.45.1880	2100	1665	160	2030	1740	48	32	6	1883	1876	140	20	115	1.4	14	1592.6	115	27.8	1400
	HJN.45.1880A														1.15	18	1579.9	89	35.8
12	HJN.45.2115	2325	1900	160	2245	1980	48	32	6	2118	2112	140	20	115	1.4	16	1804.1	114	31.9	1600
	HJN.45.2115A														1.15	20	1795.4	91	40
13	HJN.45.2370	2600	2146	180	2520	2220	48	32	6	2373	2367	158	22	130	1.4	18	2065.6	116	40.7	2100
	HJN.45.2370A														1.15	22	2040.9	94	49.7
14	HJN.45.2600	2835	2365	180	2750	2450	54	36	6	2603	2597	158	22	130	1.4	18	2263.5	127	37.6	2400
	HJN.45.2600A														1.15	22	2260.8	104	45.9
15	HJN.50.2820	3085	2555	200	3000	2640	54	36	6	2823	2817	178	22	150	1.4	20	2455	124	52.2	3400
	HJN.50.2820A														1.15	25	2444.1	99	65.3
16	HJN.50.3120	3400	2840	200	3310	2930	54	36	6	3123	3117	178	22	150	1.4	22	2722.5	125	57.4	4000
	HJN.50.3120A														1.4	25	2719	110	65.3
17	HJN.50.3580	3920	3240	240	3820	3340	60	40	6	3583	3577	218	22	190	1.4	22	3118.4	143	72.7	6700
	HJN.50.3580A														1.4	25	3118.8	126	82.6
18	HJN.50.4030	4370	3690	240	4270	3790	66	40	6	4033	4027	218	22	190	1.4	22	3558.3	163	53.6	7700
	HJN.50.4030A														1.4	28	3549	128	68.2
19	HJN.50.4540	4860	4210	240	4760	4310	72	40	6	4543	4537	218	22	190	1.4	22	4042.2	185	72.1	8760
	HJN.50.4540A														1.4	30	4042.4	136	99.1
