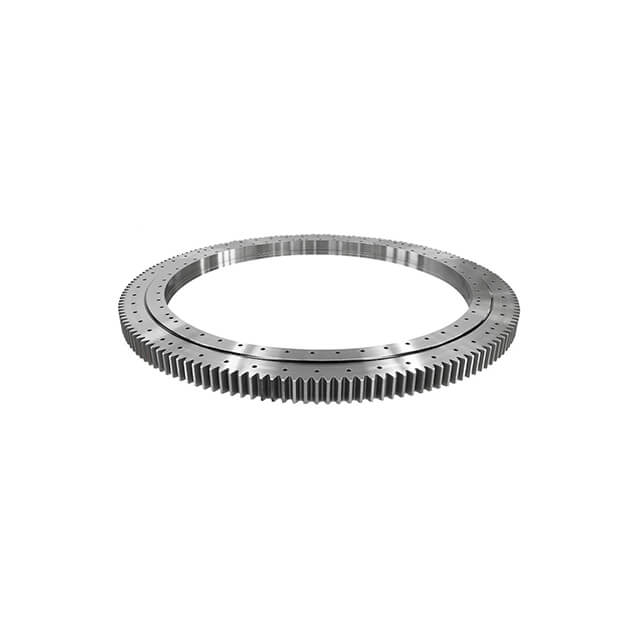

Single Row Four Point Contact Ball Slewing Bearing（HS Series）--External Gear

Single Row Four Point Contact Ball Slewing Bearing (HS Series）--External Gear

The single row four point contact ball slewing bearing is composed of two seat rings, which design in compact structure and light weight, steel ball contact with the circular raceway at four point, it can bear the axial force, radial force and the tilting moment at the same time.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Characteristic Of Structure, Performance And Application

The single row four point contact ball slewing bearing is composed of two seat rings, which design in compact structure and light weight, steel ball contact with the circular raceway at four point, it can bear the axial force, radial force and the tilting moment at the same time.

It can be used for slewing conveyer, welding manipulator, light & medium duty crane, excavator, and other construction machinery.

Note:

nl-number of lubricating holes,evenly distributed,lubricating nipple M10*1 JB/T7940.1-JB/T7940.2.
Mounting hole n-¦µ,may be replaced with screw hole,tooth width b may be taken as H-h.
Gear force of periphery given in the table is its maximum value,nominal force of periphery is taken 1/2 of the given value.
The spaceshift coefficient given in the tolde is the data of outer tooth,while that of inner tooth is +0.35.(REViSE).

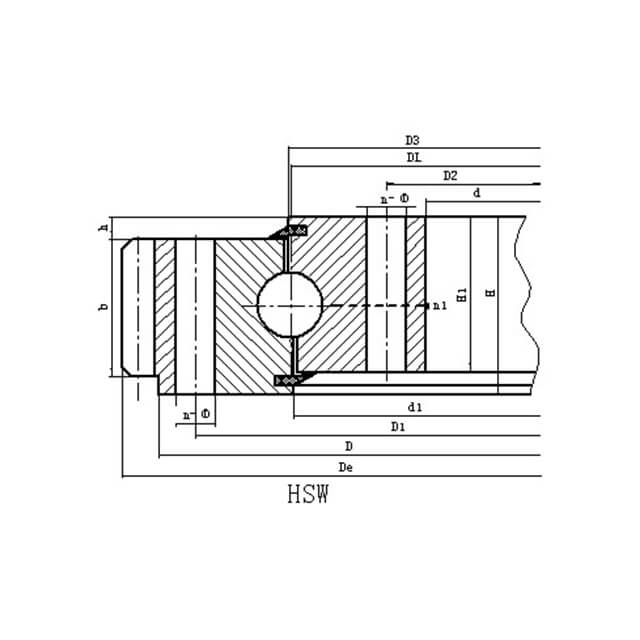

Technical Parameters

No.	External gear DL mm	Dimensions			Mounting Dimensions				Structural Dimension					Gear data					Gear circumferential force	weight kg
		D mm	d mm	H mm	D1 mm	D2 mm	n	mm	n1 mm	D3 mm	d1 mm	H1 mm	h mm	b mm	x	m mm	De mm	z	Quenching T 104N
1	HSW.25.625	725	525	80	685	565	18	18	3	626	624	68	12	60	1.4	5	751.9	146	5.2	100
	HSW.25.625A														1.15	6	755.5	122	6.2
2	HSW.25.720	820	620	80	780	660	18	18	3	721	719	68	12	60	1.4	6	860.3	139	6.2	120
	HSW.25.720A														1	8	861.1	104	8.3
3	HSW.30.820	940	705	95	893	749	24	20	4	821	818	83	12	70	1.4	6	980.6	159	7.2	210
	HSW.30.820A														1	10	986.2	95	12.2
4	HSW.30.880	1000	760	95	956	800	24	20	4	881	878	83	12	70	1.15	8	1047.5	127	9.7	230
	HSW.30.880A														1	10	1046.3	101	12.2
5	HSW.30.1020	1170	875	95	1120	930	24	22	4	1021	1018	80	15	70	1.4	8	1219.3	148	9.7	300
	HSW.30.1020A														1.15	10	1219.2	118	12.2
6	HSW.30.1220	1365	1075	120	1310	1130	36	24	6	1221	1218	105	15	90	1.4	10	1424.9	138	15.7	450
	HSW.30.1220A														1	12	1435.9	116	18.8
7	HSW.35.1250	1400	1090	120	1350	1150	36	26	6	1251	1248	105	15	90	-0.35	10	1443	143	15.7	520
	HSW.35.1250A														1	12	1449.6	117	18.8
8	HSW.35.1435	1595	1278	120	1535	1335	36	26	6	1436	1433	105	15	90	1.15	12	1655.5	134	18.8	610
	HSW.35.1435A														1	14	1661.2	115	21.9
9	HSW.35.1540	1720	1360	140	1660	1420	42	26	6	1541	1538	122	18	110	1.4	12	1780.8	144	23	732
	HSW.35.1540A														1.15	14	1791.1	124	26.8
10	HSW.35.1700	1875	1525	140	1815	1585	42	29	6	1701	1698	122	18	110	1.15	14	1945.4	135	26.8	844
	HSW.35.1700A														1.15	16	1950.8	118	30.5
11	HSW.40.1880	2100	1665	160	2030	1740	48	32	6	1881	1878	140	20	115	1.4	14	2189.8	152	27.8	1400
	HSW.40.1880A														1.15	18	2194.6	118	35.8
12	HSW.40.2115	2325	1900	160	2245	1980	48	32	6	2116	2113	140	20	115	1.4	16	2406.5	146	31.9	1600
	HSW.40.2115A														1.15	20	2418.4	117	40
13	HSW.40.2370	2600	2146	180	2520	2220	48	32	6	2371	2368	158	22	130	1.4	18	2707.3	146	40.7	2100
	HSW.40.2370A														1.15	22	2704.4	119	49.7
14	HSW.40.2600	2835	2365	180	2750	2450	54	36	6	2601	2598	158	22	130	1.4	18	2941.7	159	37.6	2400
	HSW.40.2600A														1.15	22	2946.9	130	45.9
15	HSW.50.2820	3085	2555	200	3000	2640	54	36	6	2822	2818	178	22	150	1.4	20	3188.4	155	52.2	3400
	HSW.50.2820A														1.15	25	3198.4	124	65.3
16	HSW.50.3120	3400	2840	200	3310	2930	54	36	6	3122	3118	178	22	150	1.4	22	3507.2	155	57.4	4000
	HSW.50.3120A														1.4	25	3509.6	136	65.3
17	HSW.50.3580	3920	3240	240	3820	3340	60	40	6	3582	3578	218	22	190	1.4	22	4036.1	179	72.7	6700
	HSW.50.3580A														1.4	25	4035.6	157	82.6
18	HSW.50.4030	4370	3690	240	4270	3790	66	40	6	4032	4028	218	22	190	1.4	22	4520.6	201	53.6	7700
	HSW.50.4030A														1.4	28	4522.4	157	68.2
19	HSW.50.4540	4860	4210	240	4760	4310	72	40	6	4542	4538	218	22	190	1.4	22	4983.1	222	72.1	8760
	HSW.50.4540A														1.4	30	4992.9	162	99.1
