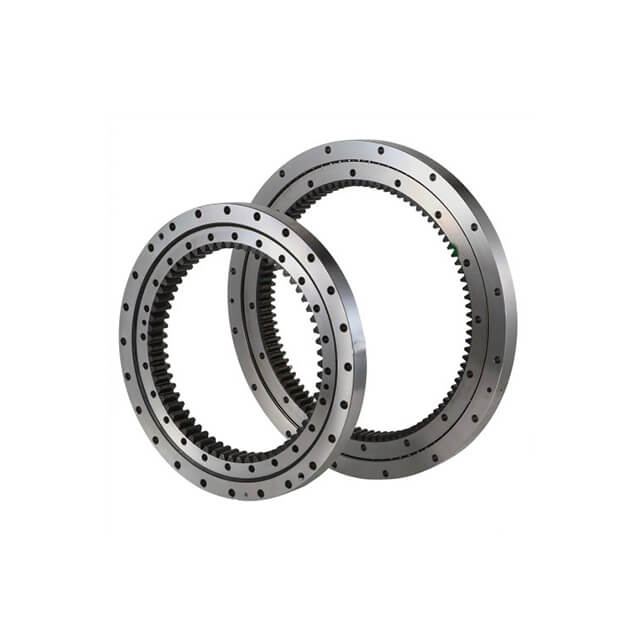

The Thin Section Slewing Bearing has the same structure with the ordinary slewing bearing,but the weight is light,and rotate flexibly,which widely used in the food machinaery,canning machinery and environmental machinery etc.

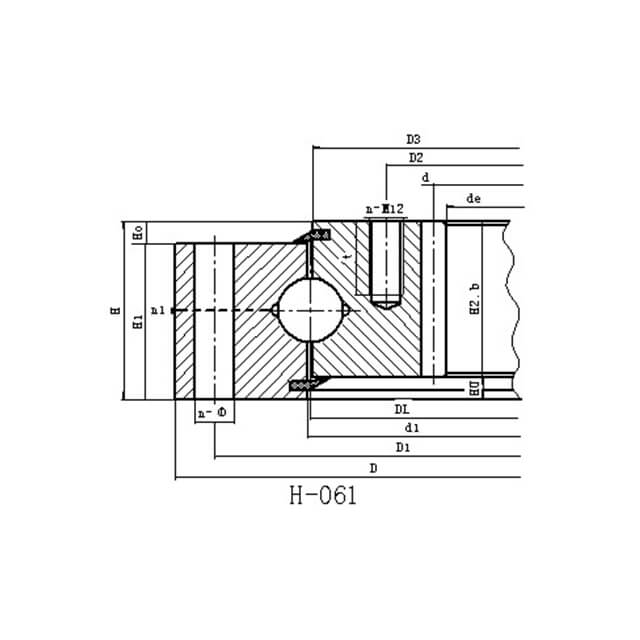

n1 is the nos of lubricating holes.Oil cup M8×1JB/T7940.1~JB/T7940.
The Oil nipple's location can be change according to the user's application.
"Km" is addendum reduction.
Model | Dimensions | Mounting dimension | Structural dimension | Gear Data | Gear circumferential force | Clearance | |||||||||||||||||||
DL | Weight | ||||||||||||||||||||||||
kg | D | de | H | D1 | D2 | n | Φ | t | D3 | d1 | H1 | H2 | Hu | Ho | d | m | z | k.m | b | Allowed | Max | Axial | Radial | ||
mm | mm | mm | mm | mm | mm | M | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | [KN] | ||||||
mm | |||||||||||||||||||||||||
LN-062.20.0414 | 31 | 486 | 326.5 | 56 | 460 | 375 | 24 | 13.5 | 12 | 20 | 415.5 | 413 | 45.5 | 45.5 | 10.5 | 10.5 | 335 | 5 | 67 | -0.75 | 45.5 | 13.54 | 27.08 | ≤0.28 | ≤0.24 |
LN-062.20.0544 | 42 | 616 | 445.2 | 56 | 590 | 505 | 32 | 13.5 | 12 | 20 | 545.5 | 543 | 45.5 | 45.5 | 10.5 | 10.5 | 456 | 6 | 76 | -0.6 | 45.5 | 16 | 32 | ≤0.30 | ≤0.26 |
LN-062.20.0644 | 50 | 716 | 547.2 | 56 | 690 | 605 | 36 | 13.5 | 12 | 20 | 645.5 | 643 | 45.5 | 45.5 | 10.5 | 10.5 | 558 | 6 | 93 | -0.6 | 45.5 | 15.62 | 31.24 | ≤0.30 | ≤0.26 |
LN-062.20.0744 | 58 | 816 | 649.2 | 56 | 790 | 705 | 40 | 13.5 | 12 | 20 | 745.5 | 743 | 45.5 | 45.5 | 10.5 | 10.5 | 660 | 6 | 110 | -0.6 | 45.5 | 15.32 | 30.64 | ≤0.30 | ≤0.26 |
LN-062.20.0844 | 69 | 916 | 737.6 | 56 | 890 | 805 | 40 | 13.5 | 12 | 20 | 845.5 | 843 | 45.5 | 45.5 | 10.5 | 10.5 | 752 | 8 | 94 | -0.8 | 45.5 | 20.8 | 41.6 | ≤0.30 | ≤0.26 |
LN-062.20.0944 | 76 | 1016 | 841.6 | 56 | 990 | 905 | 44 | 13.5 | 12 | 20 | 945.5 | 943 | 45.5 | 45.5 | 10.5 | 10.5 | 856 | 8 | 107 | -0.8 | 45.5 | 20.49 | 40.98 | ≤0.30 | ≤0.26 |
LN-062.20.1094 | 91 | 1166 | 985.6 | 56 | 1140 | 1055 | 48 | 13.5 | 12 | 20 | 1096 | 1093 | 45.5 | 45.5 | 10.5 | 10.5 | 1000 | 8 | 125 | -0.8 | 45.5 | 20.16 | 40.32 | ≤0.30 | ≤0.26 |
