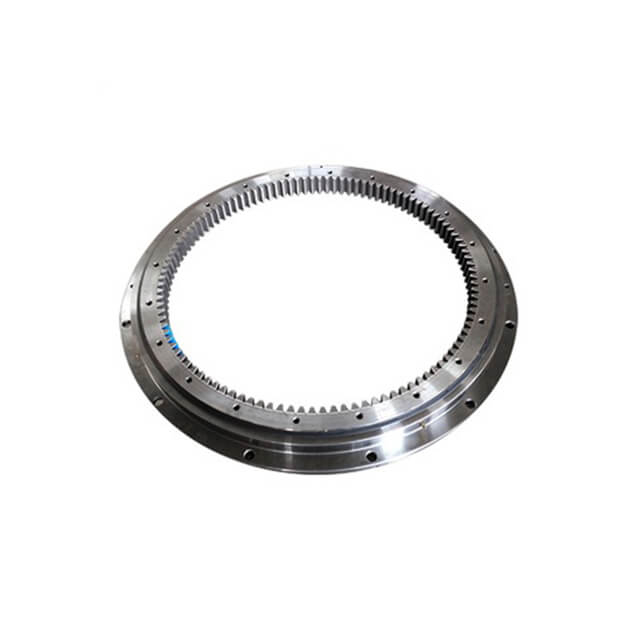

Slewing Bearing With Flange -- Internal Gear

The Thin Section Slewing Bearing has the same structure with the ordinary slewing bearing,but the weight is light,and rotate flexibly,which widely used in the food machinaery,canning machinery and environmental machinery etc.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Characteristic Of Structure, Performance And Application

The Thin Section Slewing Bearing has the same structure with the ordinary slewing bearing,but the weight is light,and rotate flexibly,which widely used in the food machinaery,canning machinery and environmental machinery etc.

Note:

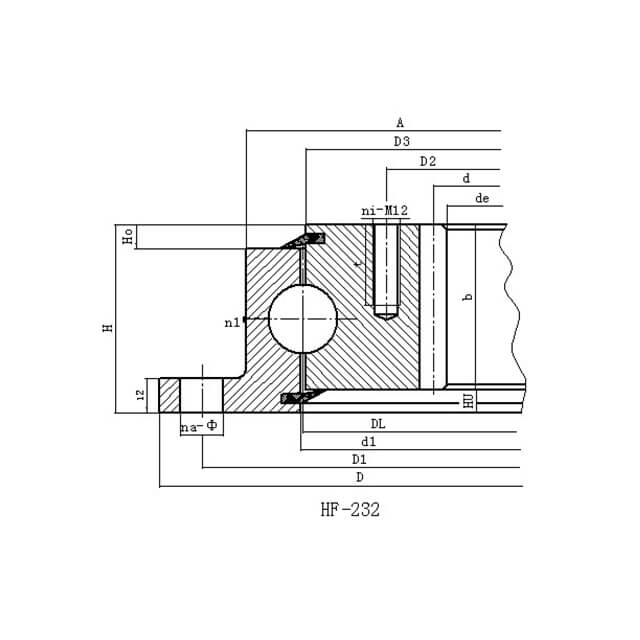

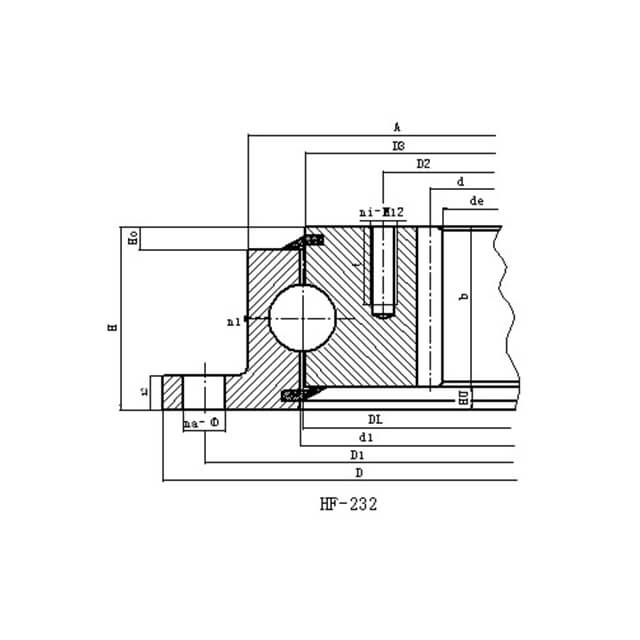

n1 is the nos of lubricating holes.Oil cup M8×1JB/T7940.1~JB/T7940.
The Oil nipple's location can be change according to the user's application.
"Km" is addendum reduction.

Technical Parameters

Model DL	Wght	Dimensions			Mounting dimension							Structural dimension					Gear data					Gear		Clearance
																						circumferential
	[kg]																					force
		D	de	H	D1	D2	na	Φ/M	ni	Φ/M	t	n1	D3	d1	A	Hu	d	m	z	b	k.m	Allowed	Max	Axial	Radial
		mm	mm	mm	mm	mm	na	mm	ni	mm	mm	n1	mm	mm	mm	mm	mm	mm	mm	mm	mm	KN	KN	Axial	Radial
LN-232.20.0414	26.9	518	326.5	56	490	375	16	18	12	M12	20	4	412.5	415.5	453	10.5	335	5	67	45.5	-0.75	13.54	27.08	≤0.5	≤0.5
LN-232.20.0544	36.7	648	445.5	56	620	505	20	18	16	M12	20	4	542.5	545.5	583	10.5	456	6	76	45.5	-0.6	16	32	≤0.5	≤0.5
LN-232.20.0644	43.4	748	547.5	56	720	605	24	18	18	M12	20	4	642.5	645.5	683	10.5	558	6	93	45.5	-0.6	15.62	31.24	≤0.5	≤0.5
LN-232.20.0744	50.8	848	649.2	56	820	705	24	18	20	M12	20	4	742.5	745.5	783	10.5	660	6	110	45.5	-0.6	15.32	30.64	≤0.5	≤0.5
LN-232.20.0844	61.3	948	737.6	56	920	805	28	18	20	M12	20	4	842.5	845.5	883	10.5	752	8	94	45.5	-0.8	20.8	41.6	≤0.5	≤0.5
LN-232.20.0944	65.4	1048	841.6	56	1020	905	32	18	22	M12	20	4	942.5	945.5	983	10.5	856	8	107	45.5	-0.8	20.49	40.98	≤0.5	≤0.5
LN-232.20.1094	80.3	1198	985.6	56	1170	1055	32	18	24	M12	20	4	1092.5	1096	1133	10.5	1000	8	125	45.5	-0.8	20.16	40.32	≤0.5	≤0.5
