Three Row Roller Slewing Bearing (13 Series)--Internal Gear

Three Row Roller Slewing Bearing (13 Series)--Internal Gear

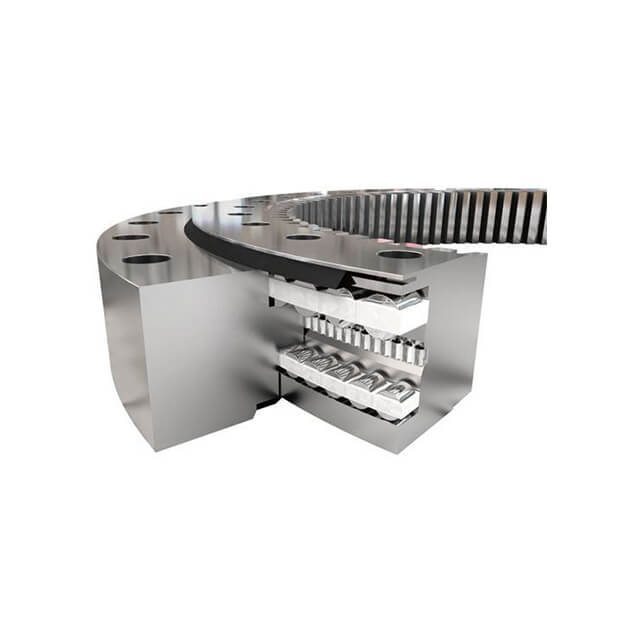

The three row roller slewing bearing has three seat rings, which separate the upper, lower and radial raceways, it made each row of the roller’s load capacity can be specified and can bear different loads simultaneously.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Characteristic Of Structure, Performance And Application

The three row roller slewing bearing has three seat rings, which separate the upper, lower and radial raceways, it made each row of the roller’s load capacity can be specified and can bear different loads simultaneously. The capacity load is the largest one compare with the other three models. Due to the large size in axial and radial dimension & the solid structure, it is specially suitable for the heavy duty machinery such as wheeled excavator, wheeled crane, ship crane, ladle turrets and the heavy duty mobile crane etc.

Note:

n1 is the nos of lubricating holes.Oil cup M10×1JB/T7940.1~JB/T7940.2.The Oil nipple's location can be change according to the user's application.
n-φcan change to tapped hole,the diameter of tapped hole is M,depth is 2M.
The tangential tooth force in the form is the max tooth force,the nominal tangential tooth force is 1/2 of the max one.
"K" is addendum reduction coefficient.

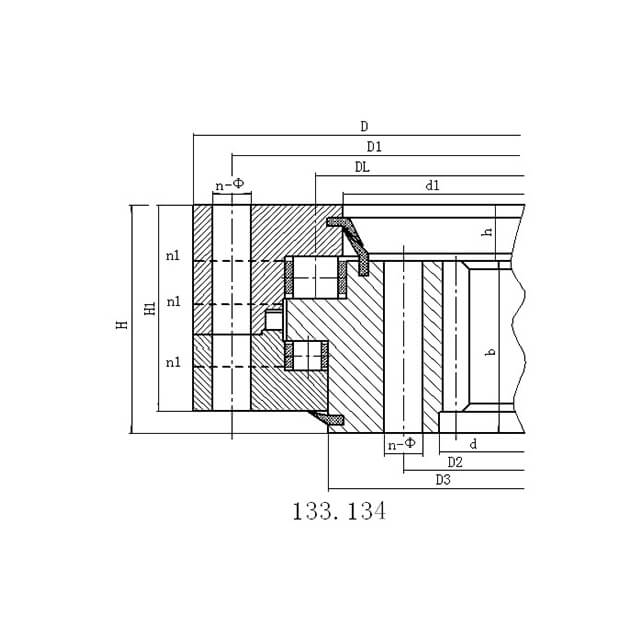

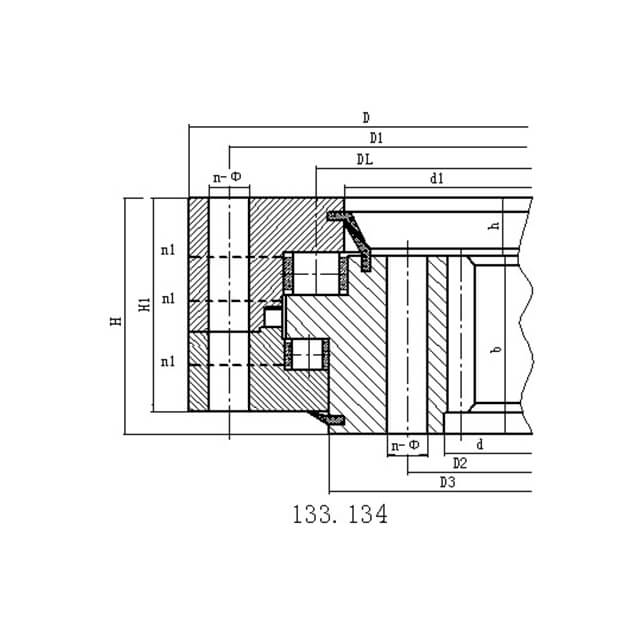

Technical Parameters

No.	Inxternal Gear	Dimensions			Mounting Dimension						Structural Dimension			Gear Data					Gear circumferential force		Weight
	DL																				kg
	mm	D	d	H	D1	D2	n	mm	dm	L	n1	H1	h	b	x	m	D e	z	Normalizing	Quenching
		mm	mm	mm	mm	mm			mm	mm	mm	mm	mm	mm		mm	mm		Z 104N	T 104N
1	133.25.500	634	366	148	598	402	24	18	M16	32	4	10	32	80	0.5	5	337	68	5	6.7	224
	134.25.500															6	338.4	57
2	133.25.560	694	426	148	658	462	24	18	M16	32	4	10	32	80	0.5	5	397	80	5	6.7	240
	134.25.560															6	398.4	67
3	133.25.630	764	496	148	728	532	28	18	M16	32	4	10	32	80	0.5	6	458.4	77	6	8	270
	134.25.630															8	459.2	58
4	133.25.710	844	576	148	808	612	28	18	M16	32	4	10	32	80	0.5	6	536.4	90	6	8	300
	134.25.710															8	539.2	68
5	133.32.800	964	636	182	920	680	36	22	M20	40	4	10	40	120	0.5	8	595.2	75	12.1	16.7	500
	134.32.800															10	594	60
6	133.32.900	1064	736	182	1020	780	36	22	M20	40	4	10	40	120	0.5	8	691.2	87	12.1	16.7	600
	134.32.900															10	694	70
7	133.32.1000	1164	836	182	1120	880	40	22	M20	40	5	10	40	120	0.5	10	784	79	15.1	20.9	680
	134.32.1000															12	784.8	66
8	133.32.1120	1284	956	182	1240	1000	40	22	M20	40	5	10	40	120	0.5	10	904	91	15.1	20.9	820
	134.32.1120															12	904.8	76
9	133.40.1250	1445	1055	220	1393	1107	45	26	M24	48	5	10	50	150	0.5	12	988.8	83	22.9	31.4	1200
	134.40.1250															14	985.6	71
10	133.40.1400	1595	1205	220	1543	1257	45	26	M24	48	5	10	50	150	0.5	12	1144.8	96	22.9	31.4	1300
	134.40.1400															14	1139.6	82
11	133.40.1600	1795	1405	220	1743	1457	48	26	M24	48	6	10	50	150	0.5	14	1335.6	96	26.3	36.6	1520
	134.40.1600															16	1334.4	84
12	133.40.1800	1995	1605	220	1943	1657	48	26	M24	48	6	10	50	150	0.5	14	1531.6	110	26.3	36.6	1750
	134.40.1800															16	1526.4	96
13	133.45.2000	2221	1779	231	2155	1845	60	33	M30	60	6	12	54	160	0.5	16	1702.4	107	32.2	44.5	2400
	134.45.2000															18	1699.2	95
14	133.45.2240	2461	2019	231	2395	2085	60	33	M30	60	6	12	54	160	0.5	16	1926.4	121	32.2	44.5	2700
	134.45.2240															18	1933.2	108
15	133.45.2500	2721	2279	231	2655	2345	72	33	M30	60	8	12	54	160	0.5	18	2185.2	122	36.2	50.1	3000
	134.45.2500															20	2188	110
16	133.45.2800	3021	2579	231	2955	2645	72	33	M30	60	8	12	54	160	0.5	18	2491.2	139	36.2	50.1	3400
	134.45.2800															20	2488	125
17	133.50.3150	3432	2868	270	3342	2958	72	45	M42	84	8	12	65	180	0.5	20	2768	139	45.2	62.6	5000
	134.50.3150															22	2758.8	126
