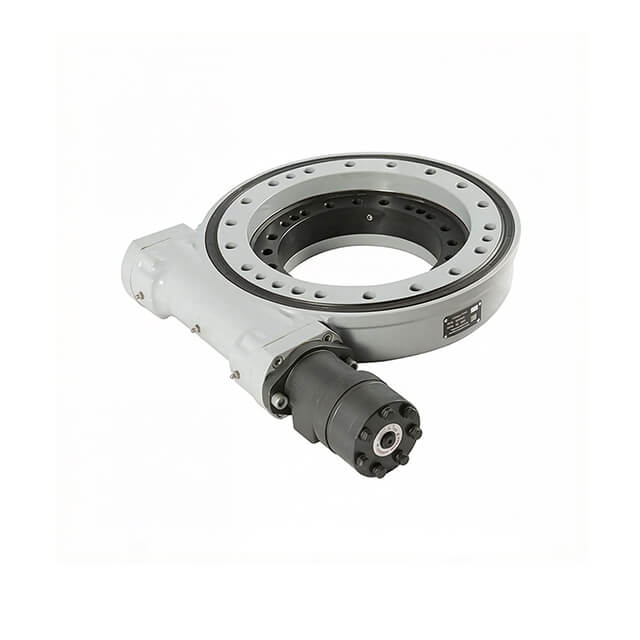

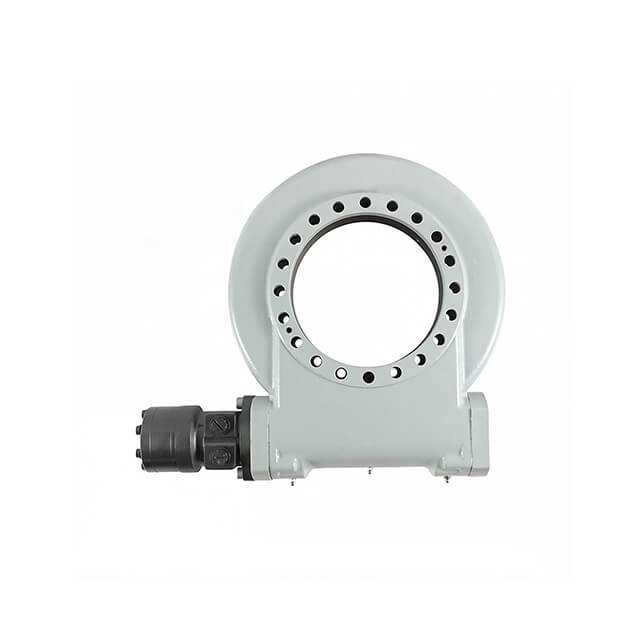

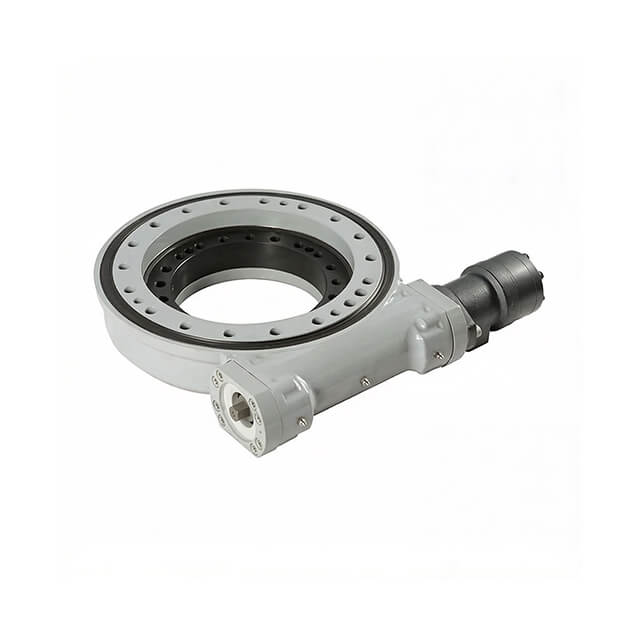

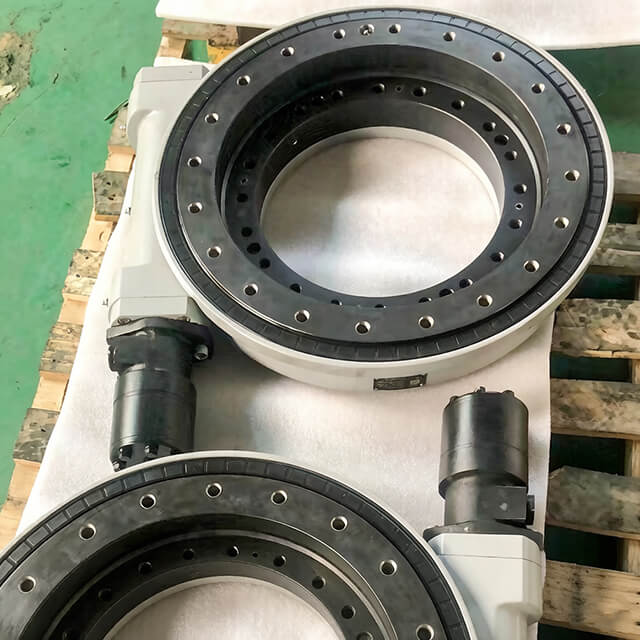

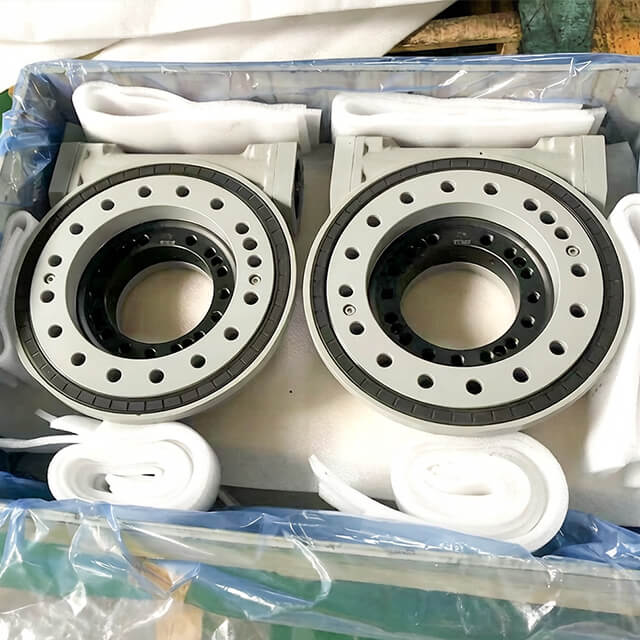

The SE series is a classic and widely used type of slewing drive. Its core design typically integrates a "single-row ball slewing bearing with a worm gear drive". It is essentially a complete electromechanical "slewing assembly" that highly integrates the slewing bearing, gear reducer, drive motor, and brake. It provides customers with a "ready-to-install" solution.
Compact structure, space-saving
High reduction ratio, large output torque
Self-locking function, high safety
Smooth operation, high precision:Multi-tooth engagement ensures stable transmission and low noise
Easy installation and maintenance:Simply bolt the fixed ring to the base, connect the rotating ring to the load, and connect the motor power supply
High rigidity, anti-overturning:The single-row ball slewing bearing can withstand axial force, radial force, and overturning moment simultaneously, making it suitable for complex loading conditions
Core applications revolve around needs for "low speed, heavy load, and precise positioning or self-locking."
Solar Tracking Systems
Small Wind Turbine Yaw Systems
Engineering & Construction Machinery
Industrial Automation
Welding Positioners
Rotary Tables
Material Handling
Military & Security
Medical Equipment
Special Vehicles
Slewing drive performance parameters | |||||||||||||||
Model | Gear Ratio | Output Torque (max.) | Tilting Moment (max.) | Holding Torque | Static Axial Load Rating | Static Radial Load Rating | Mechanical Efficiency | Self-locking | Precision | IP Class | |||||
SE3 | 62:1 | 1.2 kN.m | 0.89x10³ Ibf.ft | 1.1 kN.m | 0.81x10³ Ibf.ft | 2.2 kN.m | 1.6x10³ Ibf.ft | 30kN | 6.7x10³ Ibf | 15 kN | 3.3x10³ Ibf | 30% | Reliable static self-locking | ≤0.2° | IP65 |
SE5 | 71:1 | 2200N.m | 1624 Ibf.ft | 3160N.m | 2322 Ibf.ft | 5450N.m | 4022 Ibf.ft | 52kN | 11700 Ibf | 28 kN | 6300 Ibf | 40% | Reliable static self-locking | ≤0.2° | IP65 |
SE7 | 71:1 | 3.5 kN.m | 2.58x10³ Ibf.ft | 13.5 kN.m | 9.96x10³ Ibf.ft | 10.4 kN.m | 7.67x10³ Ibf.ft | 133kN | 30x10³ Ibf | 53 kN | 11.9x10³ Ibf | 40% | Reliable static self-locking | ≤0.2° | IP65 |
SE9 | 61:1 | 12.2 kN.m | 9.0x10³ Ibf.ft | 33.9kN.m | 25x10³ Ibf.ft | 38.7kN.m | 28.5x10³ Ibf.ft | 338kN | 20.3x10³ Ibf | 135 kN | 15.9x10³ Ibf | 40% | Reliable static self-locking | ≤0.2° | IP65 |
SE12 | 78:1 | 15.6 kN.m | 11.5x10³ Ibf.ft | 54.3kN.m | 40x10³ Ibf.ft | 43 kN.m | 31.7x10³ Ibf.ft | 475kN | 106.8x10³ Ibf | 190kN | 42.7x10³ Ibf | 40% | Reliable static self-locking | ≤0.2° | IP65 |
SE14 | 85:1 | 17kN.m | 12.5x10³ Ibf.ft | 67.8kN.m | 50x10³ Ibf.ft | 48 kN.m | 42x10³ Ibf.ft | 555 kN | 124.9x10³ Ibf | 222 kN | 49.9x10³ Ibf | 40% | Reliable static self-locking | ≤0.2° | IP65 |
SE17 | 102:1 | 20.4kN.m | 15.1x10³ Ibf.ft | 135.6kN.m | 100x10³ Ibf.ft | 72.3kN.m | 53x10³ Ibf.ft | 970kN | 218x10³ Ibf | 390kN | 88x10³ Ibf | 40% | Reliable static self-locking | ≤0.2° | IP65 |
SE21 | 125:1 | 25kN.m | 18.5x10³ Ibf.ft | 203kN.m | 149.7x10³ Ibf.ft | 105.8kN.m | 78x10³ Ibf.ft | 1598kN | 359.6x10³ Ibf | 640kN | 144x10³ Ibf | 40% | Reliable static self-locking | ≤0.2° | IP65 |
SE25 | 150:1 | 30kN.m | 22.1x10³ Ibf.ft | 203kN.m | 199.9x10³ Ibf.ft | 158.3kN.m | 116.8x10³ Ibf.ft | 2360kN | 531x10³ Ibf | 945kN | 212.6x10³ Ibf | 40% | Reliable static self-locking | ≤0.2° | IP65 |
SE32 | 154:1 | 32kN.m | 23.6x10³ Ibf.ft | 347kN.m | 256x10³ Ibf.ft | 190kN.m | 140x10³ Ibf.ft | 3021kN | 680x10³ Ibf | 1210kN | 272x10³ Ibf | 40% | Reliable static self-locking | ≤0.2° | IP65 |
