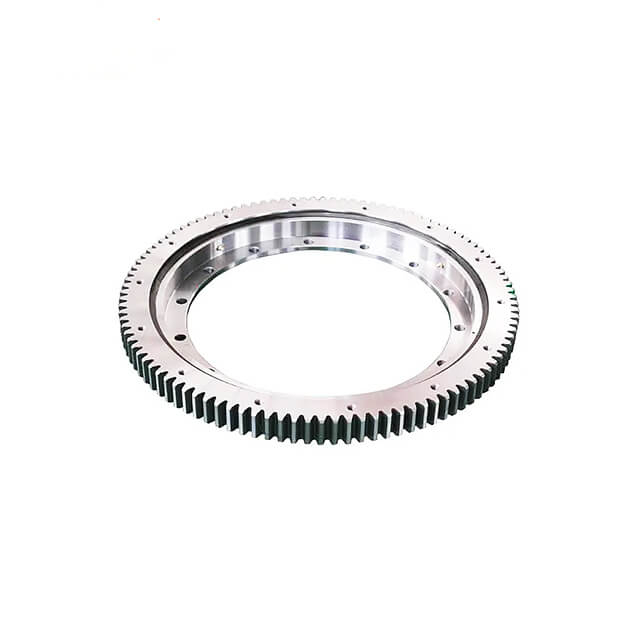

Slewing Bearing With Flange -- External Gear

The Thin Section Slewing Bearing has the same structure with the ordinary slewing bearing,but the weight is light,and rotate flexibly,which widely used in the food machinaery,canning machinery and environmental machinery etc.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Characteristic Of Structure, Performance And Application

The Thin Section Slewing Bearing has the same structure with the ordinary slewing bearing,but the weight is light,and rotate flexibly,which widely used in the food machinaery,canning machinery and environmental machinery etc.

Note:

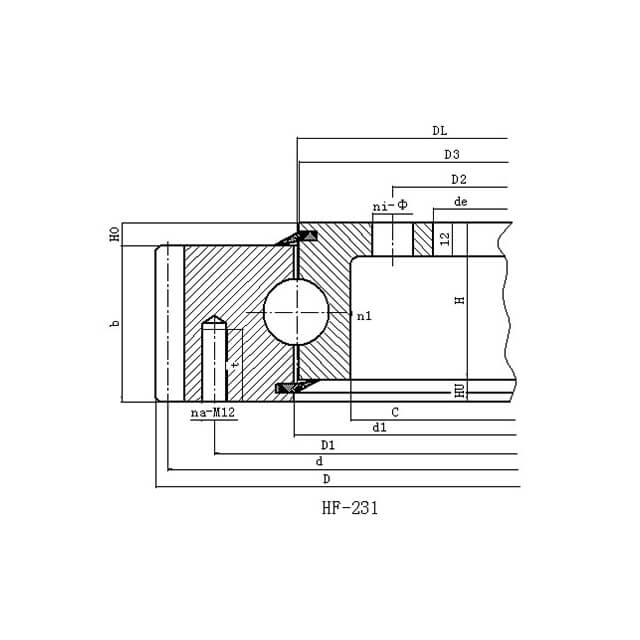

n1 is the nos of lubricating holes.Oil cup M8×1JB/T7940.1~JB/T7940.
The Oil nipple's location can be change according to the user's application.
"Km" is addendum reduction.

Technical Parameters

Model DL	Wght	Dimensions			Mounting dimension							Structural dimension					Gear data					Gear		Clearance
																						circumferential
	kg																					force
		D	de	H	D1	D2	na	Φ/M	ni	Φ/M	t	n1	D3	d1	C	Hu	d	m	z	b	k.m	Allowed	Max	Axial	Radial
		mm	mm	mm	mm	mm	na	mm	ni	mm	mm	n1	mm	mm	mm	mm	mm	mm	mm	mm	mm	KN	[KN]	Axial	Radial
LW-231.20.0414	29	504	304	56	455	332	10	M12	24	18	20	4	412.5	415.5	375	10.5	495	5	99	45.5	-0.5	11.75	23.5	≤0.5	≤0.5
LW-231.20.0544	39.2	640.8	434	56	585	462	14	M12	28	18	20	4	542.5	545.5	505	10.5	630	6	105	45.5	-0.5	14.2	28.4	≤0.5	≤0.5
LW-231.20.0644	47.2	742.8	534	56	685	562	16	M12	32	18	20	4	642.5	645.5	605	10.5	732	6	122	45.5	-0.6	14.2	28.4	≤0.5	≤0.5
LW-231.20.0744	53.1	838.8	634	56	785	662	18	M12	32	18	20	4	742.5	745.5	705	10.5	828	6	138	45.5	-0.6	14.2	28.4	≤0.5	≤0.5
LW-231.20.0844	64.7	950.4	734	56	885	762	18	M12	36	18	20	4	842.5	845.5	805	10.5	936	8	117	45.5	-0.8	18.93	37.86	≤0.5	≤0.5
LW-231.20.0944	69.1	1046	834	56	985	862	20	M12	40	18	20	4	942.5	945.5	905	10.5	1032	8	129	45.5	-0.8	18.93	37.86	≤0.5	≤0.5
LW-231.20.1094	82.5	1198	984	56	1135	1012	22	M12	40	18	20	4	1093	1095.5	1055	10.5	1184	8	148	45.5	-0.8	18.93	37.86	≤0.5	≤0.5
